Name: Yololiv YoloBox
Brand: Multimedia Kingdom
SKU: 108996
Availability: InStock
Rating: 5 (1 reviews)

Specifications

Warranty

Warranty	No Warranty

Appearance

Dimension	Height: 19.5mm, Length: 185mm, Width: 107mm
Product Code	48kHz
Product Model	YoloBox

General

Weight	480g

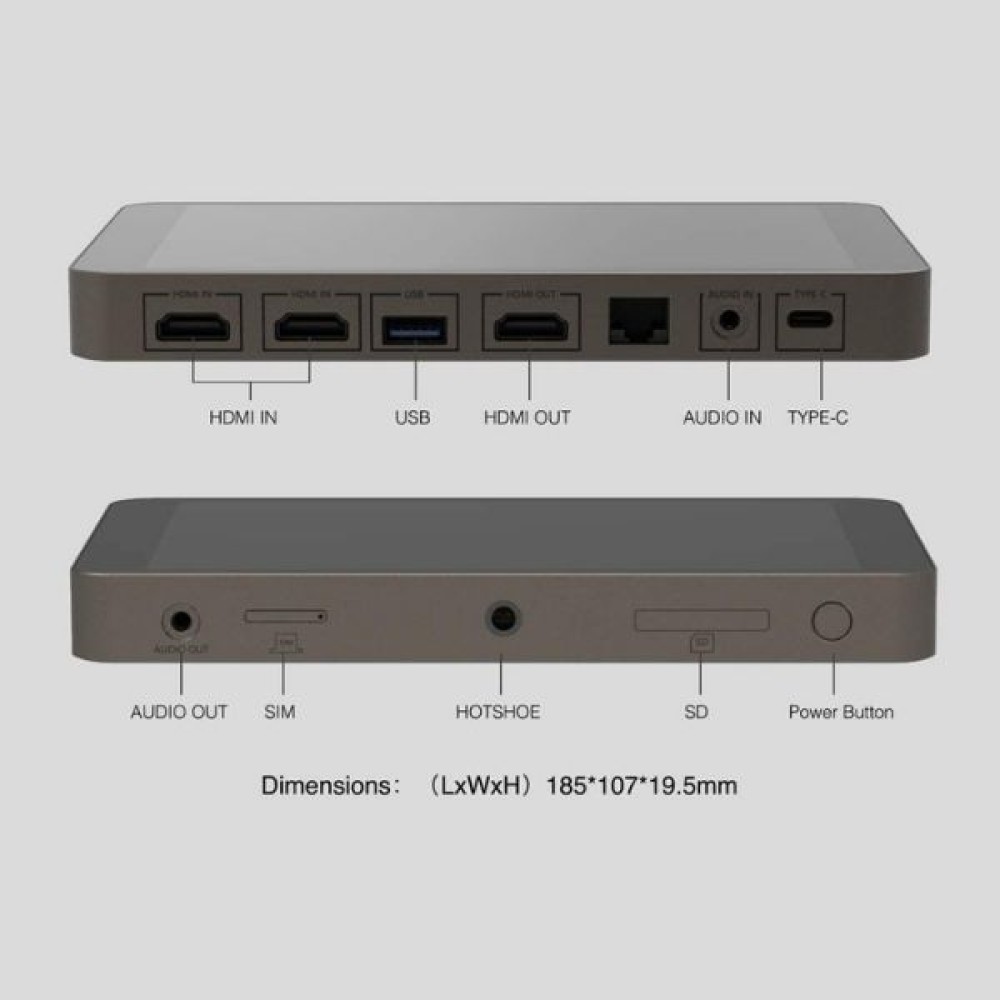

Ports	HDMI IN: Video input 2USB IN: VIDEO INPUT (Please note in some usb webcams, only video can be captured.) 3HDMI OUT: Video output 4Ethernet: Connect to Internet by Ethernet cable 5AUDIO IN: Connect with lavalier microphone or mixer 6TYPE-C: Power connector 7AUDIO OUT: Connect with headphone for the sound monitor 8SIM Card Slot: Insert SIM Card to connect to the Internet 91/4″ Screw Hole: Mount YoloBox with camera 10Insert SD card as video sources (video & PDF) & for recording 11Power Button: Turn on and turn off
Encoded Format	Video Encoded Format： H.264 Audio Encoded Format： AAC (48k) Video Recorded format： MP4 Audio Input Format：32kHz, 44.1kHz, 48kHz, 16-bit Video-Input Format：1080i/ 720p/ 1080p Live Broadcast Resolution：480P/720P/1080P
Video Storage	Storage Card Type： SD Card Storage Card Capacity： Expanded to 128G in FAT32 Format
Network Connection	WiFi：2.4G/5G 4G Network Countries & Frequency Band For Users：[NA： Variant for North America（US/Canada/Mexico）] B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71 Notes： Mexico B4 For Non-US/Canada/Mexico Users：（EM: Variant for EMEA/India/Korea/Taiwan/South Asia/Latin America/Australia/New Zealand）Users： B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B39/B40/B41 Notes： Thailand B7 Please note that the Yolobox complete machine certification corresponds to the mainstream frequencies and wavelengths of the local mainstream telecom operators. SIM Card Size： Standard SIM Card
Power	Power Interface： Type C, Quick Charge 3.0 Battery Capacity：3.7V/5200mAh
Transmission	Network Protocol： RTMP(S)
Working Environment	Operating Temperature：-10℃-40℃ Storage Temperature：5℃-40℃

Yololiv YoloBox – Professional Multi-Camera Live Streaming & Switching

With YoloBox boost your viewership in cross-channel like Facebook, YouTube, Twitch, or any other RTMP(s) supported websites. YoloBox can acquire video from numerous sources including cameras, GoPro, drones, local libraries, etc. just connect to the internet via Ethernet/WiFi/4G, sign up your YoloLiv account, then plug in your camera into YoloBox, you are the way to go.

3 Simple Steps

YoloBox helps you start live broadcasting events with unprecedented scale and effectiveness

Connect to the internet via Ethernet/WiFi/4G, sign up for your YoloLiv account, then plug your camera into YoloBox, you are way to go.
YoloBox can acquire video from numerous sources including cameras, GoPro, drone, local library, etc.
Boost your viewership in cross-channels like Facebook, YouTube, Twitch, or any other RTMP(s) supported websites.

Great Value For Everything It Can Do

YoloBox is the equivalent of ATEM Mini + Computer + Monitor + Restream + Dedicated Desk

8 Core Processor Leading performance, Robust connectivity

The Android-based software-driven device that is only getting better and more powerful

More powerful processing – An integrated Adreno 506 Series GPU delivers processing power for dazzling displays.
Longer battery life – Devices require less frequent charging thanks to a low-power Cortex A53 processor and efficiency-boosting features.
Integrated X9 LTE – Up to 3x the LTE upload speeds of most LTE devices and advanced Wi-Fi for super-fast sharing of high res photos and videos.
Less time charging -Qualcomm® Quick Charge™ 3.0 is up to four times as fast as conventional charging. Spend less time charging and more time doing.
