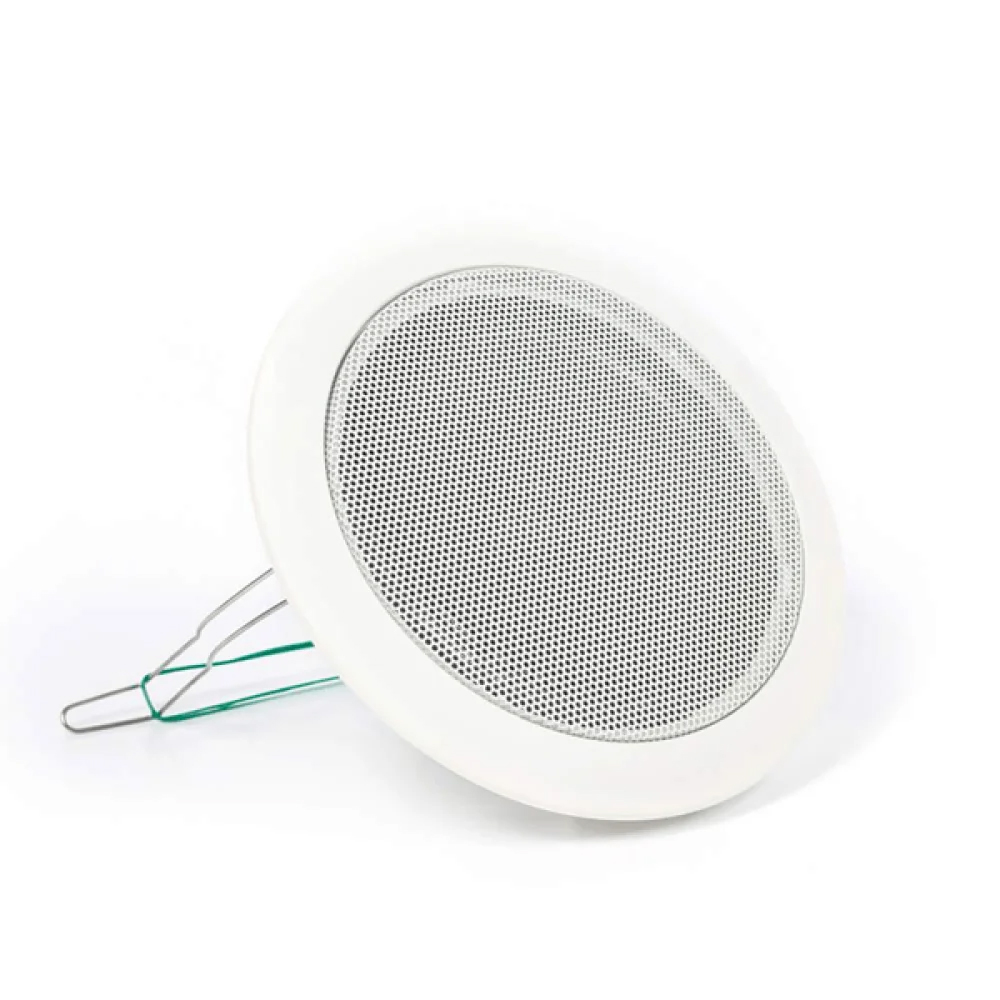

Toa PC-648R PA Ceiling Speaker
the Toa PC-648R is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.
|Rated Input||6 W (100 V line)|
|Rated Impedance||100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
|Sensitivity||90 dB (1 W, 1 m)|
|Frequency Response||100 – 18,000 Hz|
|Speaker Component||12 cm (5”) cone-type|
|Dimensions for Fixing||Mounting hole: φ145±5 mm (φ5.71″±0.2″)
Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″)
|Speaker Mounting Method||Spring clamp|
|Dimensions||φ168 × 77 (D) mm|
Toa PC-648R is that the ceiling mount speaker with a clearly audible vocal and smooth sound reproduction for easy-to-hear broadcasts. Contemporary low profile design that blends perfectly with interior decor. It options spring clamp mechanism for simple speaker mounting to the ceiling with wide frequency response. This panel does not clash with interior design.
