Description

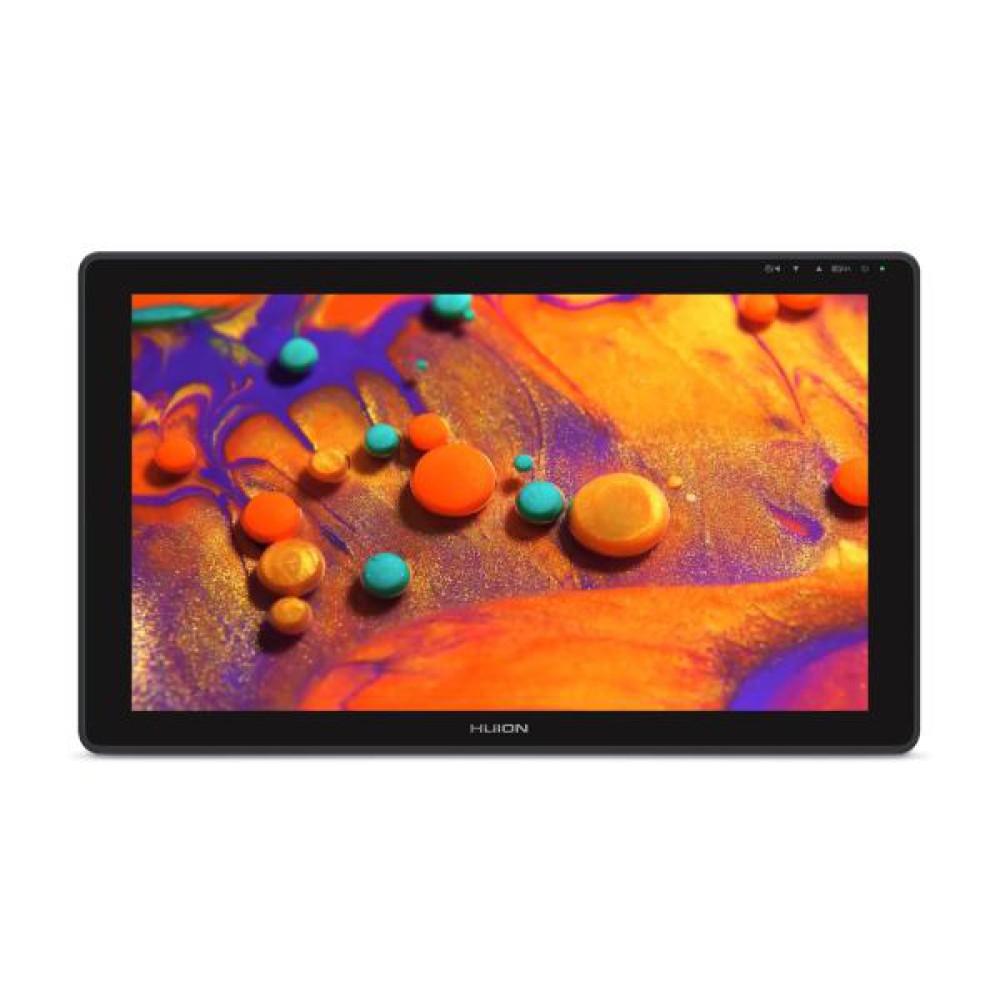

Huion Kamvas 22 Plus Pen Display
Huion Kamvas 22 Plus Pen Display has 21.5inch (Diagonal) panel size, 1920 x 1080 (16:9) resolution and 8192 Levels pen pressure.
| Product Name | Kamvas 22 Plus |
| Product Model | GS2202 |
| Color | Black |
| Panel Size | 21.5inch (Diagonal) |
| Resolution | 1920 x 1080 (16:9) |
| LCD Type | IPS |
| Active Area | 476.64 x 268.11mm |
| Contrast Ratio | Kamvas 22 Plus: 1200:1 |
| Brightness | 220cd/m2 (Max.) |
| Viewing Angle | 89°/89°(H)/89°/89°(V) (Typ.)(CR＞10) |
| Gamut | Kamvas 22 Plus: 140% sRGB |
| Display Color | 16.7M (8bit) |
| Pen Technology | Battery-Free Electromagnetic Resonance |
| Pen Resolution | 5080 LPI |
| Pressure Levels | 8192 Levels |
| Accuracy | ±0.3mm (Center), ±2mm (Corner) |
| Reading Height | 10mm |
| Report Rate | ＞220PPS |
| Tilt Recognition | ±60° |
| Digital Pen | PW517 |
| Input Voltage | AC 100-240V, 50/60Hz |
| Output Voltage | 12V 3A |
| Video Interface | USB-C × 2; USB-A × 1 |
| Adjustable Stand | ST100A (Grey) |
| OS Support | Windows 7 or later, macOS 10.12 or later Android（USB3.1 DP1.2） |
| AG Glass | Kamvas 22 Plus: Etched Anti-Glare Glass |
| Full Lamination | Kamvas 22 Plus: YES |
| Power Consumption | ≤24W |
| Standby Consumption | ≤0.3W |
| Working Temp. and Humidity | 0-40°C, 20-80% |
| Storage Temp. and Humidity | -20°C~60°C, 10-90% |
| Dimension | 546 x 323 x 19~26.7 mm (Without Stand) |
| Net Weight | 3.9 KG (With Stand) |
| What’s in the box | Pen Display, Digital Pen PW517, Adjustable Stand ST100A, 3-in-1 Cable, USB-C to USB-C cable(Only Standard for Kamvas 22 Plus), Power Adapter, AC Cable, Pen Holder PH05A, Pen Nibs x 10, Pen Nib Clip, Glove, Cleaning Cloth, Quick Start Guide |
