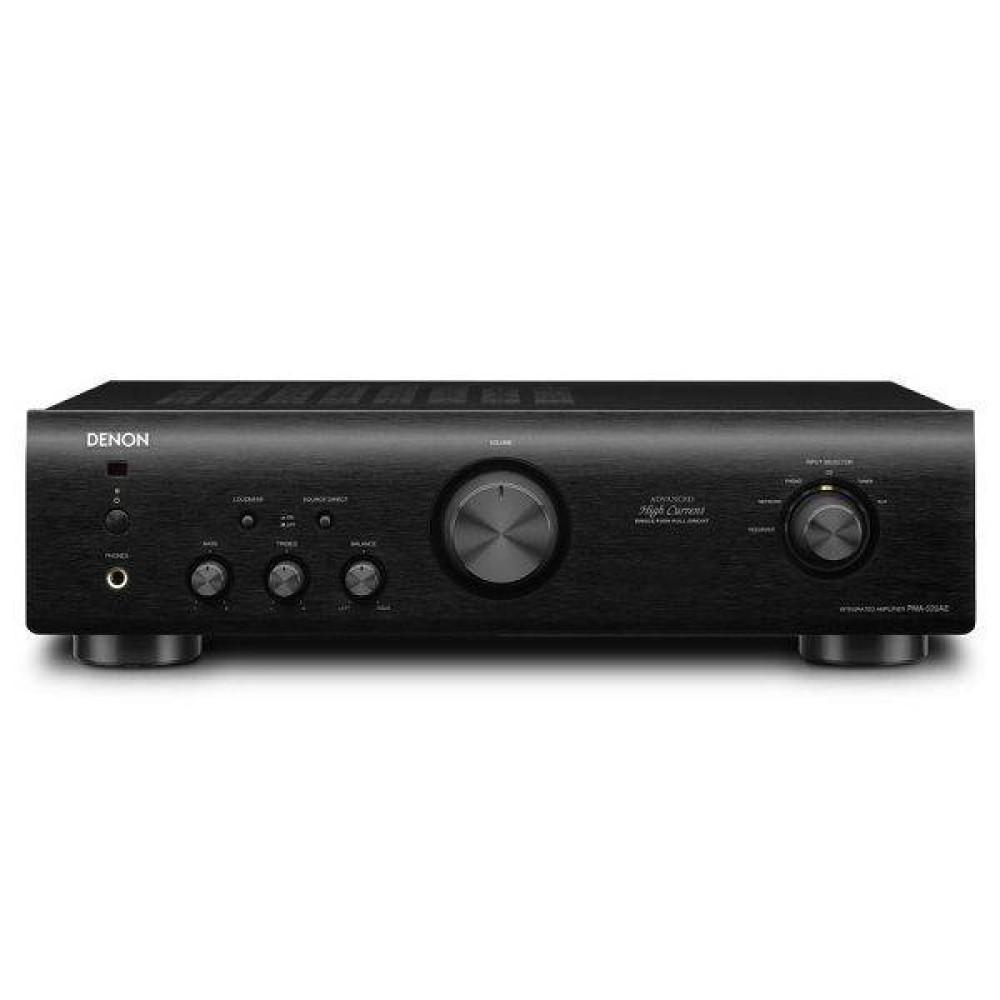

Denon PMA520AE Integrated Amplifier

Price ৳ 55,000
Regular Price ৳ 55,000
Status Out of Stock
Product Code Denon PMA520AE
Brand Denon

৳ 55,000

Out of stock


Denon PMA520AE Integrated Amplifier

Denon PMA-520AE is an integrated amplifier that features a High-Current Single-Push-Pull circuitry which could achieve both strength and detail in music playback that the manufacturer say is their focus for its pure audio amplifiers. The relay switch used for CD and phono input even contains an inert gas, which they also say would prevent the occurrence of noise that can negatively affect the signal. Durable parts were strictly selected to contribute on sound quality, which include large-capacity block capacitor for the power supply circuit, high-quality sound carbon resistors, and high-quality sound capacitors. The remote control unit that comes with the PMA-520AE includes the main functions that also control Denon CD players.

Specifications :

Output power 8 Ohm (20 Hz – 20 kHz, T.H.D. 0.07%) 45 W35W (1kHz)70 W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%) 70 W70W140 W
Total Harmonic Distortion 0.02 %0.004 %0.01 %
Input Sensitivity MM2.5 mV / 47 kohm-2.5 mV / 47 kohm
Input Sensitivity MC–200 µV / 100 ohm
Signal to Noise Ratio MM/MC 84 dB / — / -89 dB / 74 dB
Input Sensitivity High level110 mV / 30 kohms130 mV / 22 kOhm125 mV / 47 kohms
Signal to Noise Ratio High level 105dB110dB108dB
Treble Control ± 8 dB at 10 kHz ± 8 dB at 12 kHz± 8 dB at 10 kHz
Bass Control ± 8 dB at 100 Hz ± 8 dB at 100 Hz± 8 dB at 100 Hz
